How to Choose the Right Forklift
Five variables determine the right forklift for any operation: load capacity, environment, aisle width, fuel type, and lift height. Get any one wrong and you're paying for the wrong machine or creating a safety risk.
By Jorge Mena · Founder, ForkliftMatch · Updated June 2026
Step 1: Know Your Load
The forklift's rated capacity must exceed your heaviest load — including the pallet. Most pallets weigh 40–50 lbs empty; the total is your product weight plus that. Never spec to the exact limit: leave 20% headroom as a rule.
Most warehouses fall in the 3,000–5,000 lb range. Manufacturing facilities, lumber yards, and construction sites often need 8,000–15,000 lb. The right capacity also depends on load center — manufacturers rate capacity at a 24-inch load center (the distance from the front face of the forks to the center of gravity of the load). If you're moving deep or irregular loads, the effective capacity is lower than the nameplate rating.
A practical rule: if your heaviest load is 4,000 lbs, spec a 5,000 lb machine. That gives you the safety margin and keeps the machine in a lighter-duty operating regime, which extends component life.
Step 2: Indoor, Outdoor, or Both?
Indoor on smooth concrete: Electric counterbalance or reach truck with cushion tires. No emissions, quiet, lower running cost. This is Class I for standard aisles, Class II for narrow aisles.
Outdoor on gravel, asphalt, or uneven ground: Pneumatic-tire IC forklift (Class V). Handles ramps, dock plates, and weather. LPG or diesel depending on load weight and run time.
Crossing the dock both ways: Pneumatic IC or an LPG counterbalance rated for indoor/outdoor dual use. Cushion-tire electrics are not suitable for outdoor pavement.
Food-grade, cold storage, or pharmaceutical: Electric only. Combustion engine exhaust is incompatible with food safety certifications and cold storage CO2 monitoring systems. This is a compliance requirement, not a preference.
Step 3: Aisle Width
Standard aisles (11–13 ft) accommodate any counterbalance truck. Narrow aisles (8–12 ft) require a reach truck. Very narrow aisles (6–8 ft) need an order picker or very narrow aisle (VNA) machine.
Getting aisle width wrong is an expensive mistake. A standard counterbalance truck physically cannot operate in a 9-foot aisle without hitting the racking on every turn. Reach trucks and order pickers are more expensive to buy and lease, but if your facility has narrow aisles, they're not optional.
Measure your narrowest aisle — including any permanent obstructions like column faces, floor drains, or fire equipment. Then check the manufacturer's aisle requirement for any specific model, which includes turning radius, not just machine width.
Step 4: Fuel Type
If you've established the environment, fuel type often follows directly. But there are cases where you have a choice:
Electric (Class I–III)
Best for indoor-only operations. Lowest running cost, zero emissions, quiet. Lead-acid for single-shift, lithium-ion for two or more shifts. Requires charging infrastructure. See our electric vs LPG guide for the 5-year cost comparison.
LPG / Propane (Class IV, V)
Indoor or outdoor, 5-minute refuel, no charging infrastructure needed. Higher fuel cost. Requires ventilation indoors. Good for unpredictable shift patterns and indoor/outdoor mixed use.
Diesel (Class V, VII)
Outdoor only. Best for heavy loads (8,000 lb+) and rough terrain. Lower fuel cost per hour than LPG at high utilization. Not suitable for indoor use without specialized ventilation. Check CARB regulations if operating in California.
Step 5: Lift Height and Mast Type
Lift height determines your mast choice. The formula: height of your highest rack level + height of the unit being placed (typically 4–5 ft for a standard pallet) + 6–12 inches clearance. For 20-foot racks, you need roughly 25 feet of lift height.
Three mast types cover most operations:
| Mast Type | Max Lift | Lowered Height | Best For |
|---|---|---|---|
| Standard 2-stage | ~15 ft | ~7.5 ft | Low-ceiling facilities, outdoor |
| Full free-lift (FFL) 2-stage | ~15 ft | ~6.5 ft | Containers, low door clearances |
| Triple stage (3-stage) | 20–30 ft | ~7.5 ft | High-rack warehouses |
Check your ceiling height and door clearances before specifying a triple-stage mast. A 30-foot mast on a fully-raised forklift won't fit through a standard dock door. Full free-lift masts raise the load without extending the mast height, making them essential for container loading and facilities with low overhead obstructions.
Worked Example: 50,000 sq ft Distribution Warehouse
Here's how to run through the 5 steps for a real-world scenario:
Operation: 50,000 sq ft distribution warehouse, indoor only, smooth concrete, standard 12-foot aisles, rack height 18 feet, heaviest pallet 3,800 lbs, single-shift 8 hours/day.
Step 1 (Load): 3,800 lbs + 20% = 4,560 lbs needed. Spec a 5,000 lb machine.
Step 2 (Environment): Indoor on smooth concrete. Electric is ideal.
Step 3 (Aisle): 12-foot aisles — standard counterbalance works fine.
Step 4 (Fuel): Indoor only, single shift — lead-acid electric is sufficient. No need for lithium-ion at 1 shift.
Step 5 (Lift height): 18-foot racks + 5-foot pallet + 8 inches clearance = 24 feet needed. Triple-stage mast required.
Result: Class I electric counterbalance, 5,000 lb capacity, lead-acid battery, triple-stage mast. Purchase price range: $28,000–$38,000 new, $12,000–$18,000 for a 5–7 year-old unit with under 6,000 hours.
Forklift Class Reference
| Class | Type | Best for |
|---|---|---|
| Class I | Electric Motor Rider Trucks | Indoor, smooth floors, standard aisles |
| Class II | Electric Narrow Aisle Trucks | Narrow/very narrow indoor aisles, tall racking |
| Class III | Electric Hand/Rider Trucks | Pallet movement at floor level |
| Class IV | IC Cushion Tire Trucks | Indoor, smooth floors, gas/LPG/diesel |
| Class V | IC Pneumatic Tire Trucks | Outdoor, mixed surfaces, heavy loads |

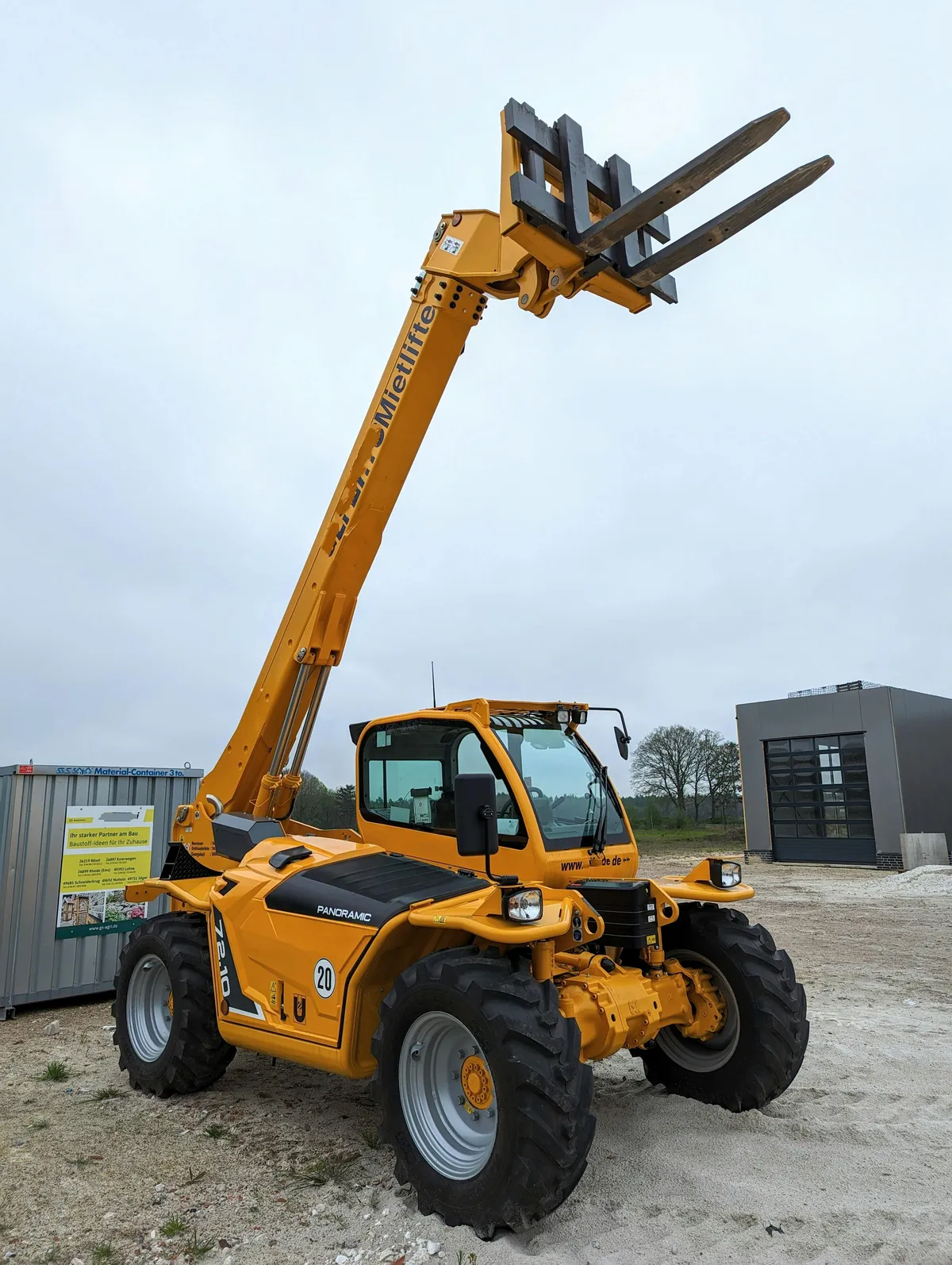

| Class VII | Rough-Terrain Trucks | Construction sites, lumber, uneven ground |
Frequently Asked Questions
How do I calculate forklift capacity for my loads?
Take your heaviest load weight including the pallet, then add 20% safety margin. If your loads are unusually deep (more than 24 inches from forks to center of gravity), actual capacity is lower than the nameplate rating. Check the load center diagram on the data plate of any machine you're evaluating.
What aisle width does a standard forklift need?
Standard counterbalance trucks need 11–13 feet of clear aisle width to handle standard 48x40 inch pallets. Reach trucks work in 8–10 feet. VNA machines can work in under 7 feet. Always verify against the specific model's turning radius data, not just machine width — they're different numbers.
Do operators need separate certifications for each class?
Yes. OSHA 29 CFR 1910.178 requires operators to be trained and evaluated on each specific truck type they operate. A Class I certification doesn't carry over to a Class IV machine. Employers are responsible for providing class-specific hands-on evaluation before an operator uses a new type.
What lift height do I need?
Add up: highest rack height + unit being placed height (4–5 ft for a standard pallet) + 6–12 inches clearance. A 20-foot rack needs roughly 25 feet of mast lift height. Triple-stage masts cover this but require ceiling clearance to extend — check your lowest overhead obstacle before specifying.
